XRD pattern of IRZ-MFI001

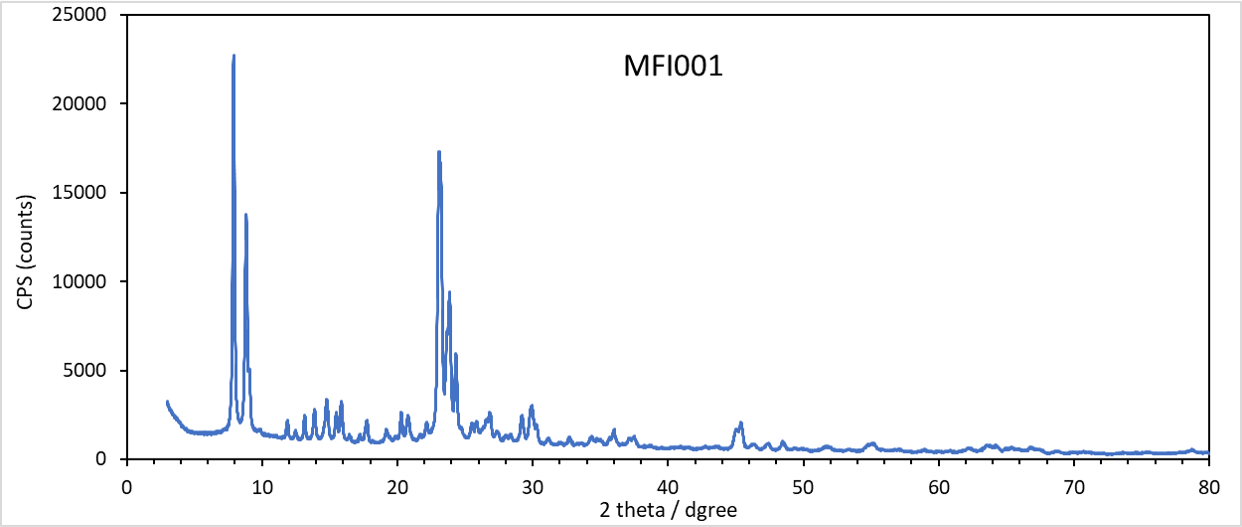

Data 1. WXRD provided by Rigaku_logo

Experimental
Equipment: Rigaku SmartLab
X-ray: Cu Kα (λ = 1.54186Å), 45 kV - 200 mA
Scan speed: 5º / min
Step: 0.01º

xrd001

Download peak list

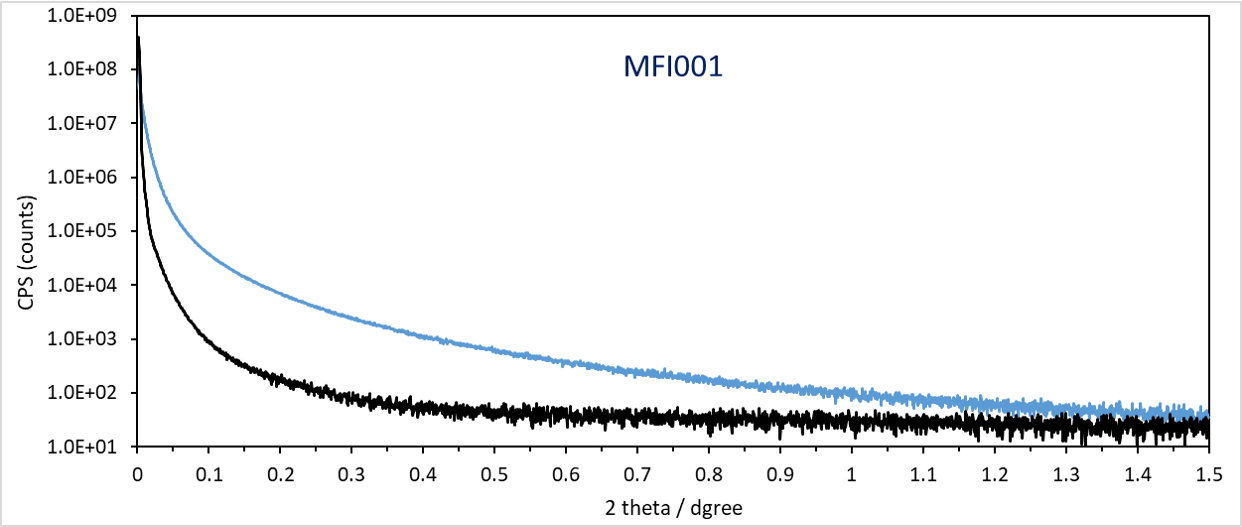

Data 2. USAXS provided by Rigaku_logo

Experimental
Equipment: Rigaku SmartLab
X-ray: Cu Kα (λ = 1.54186Å), 45 kV - 200 mA
Scan speed: 0.02º / min
Step: 0.0006º

xrd001

Particle diameter analysis
No.
Average diameter (nm)
Size distribution RSD (%)
1
19.5
58.9
2
420.0
80.6
