Gas adsorption/desorption of IRZ-MFI001
Data 1. N2 and Ar, provided by MRB_logo

Experimental

Equipment: BELSORP MAXII
N2 adsorption isotherms measured on a BELSORP MAXII at 77.4 K for N2 and 87.3 K for Ar in the relative pressure (P/P0) range of 1E-8 to 0.995. Pressure increase (caused by e.g. gas leak) was under 0.005 Pa/min during measurment.

Pretreatment
Prior to the adsorption measurements, the samples were degassed at 400 ºC for 8 h and subsequently degassed at room temperature for 12 h.

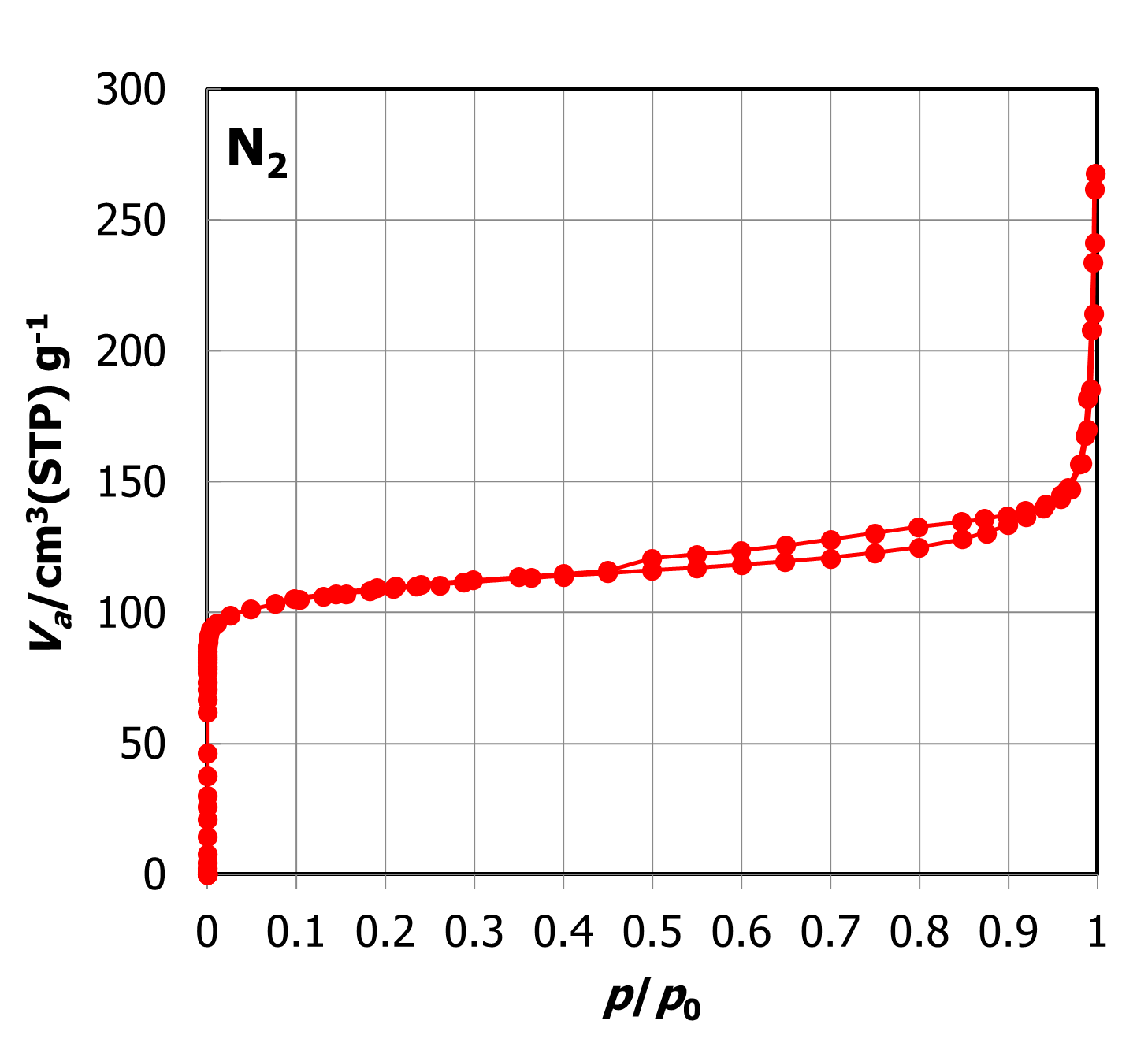

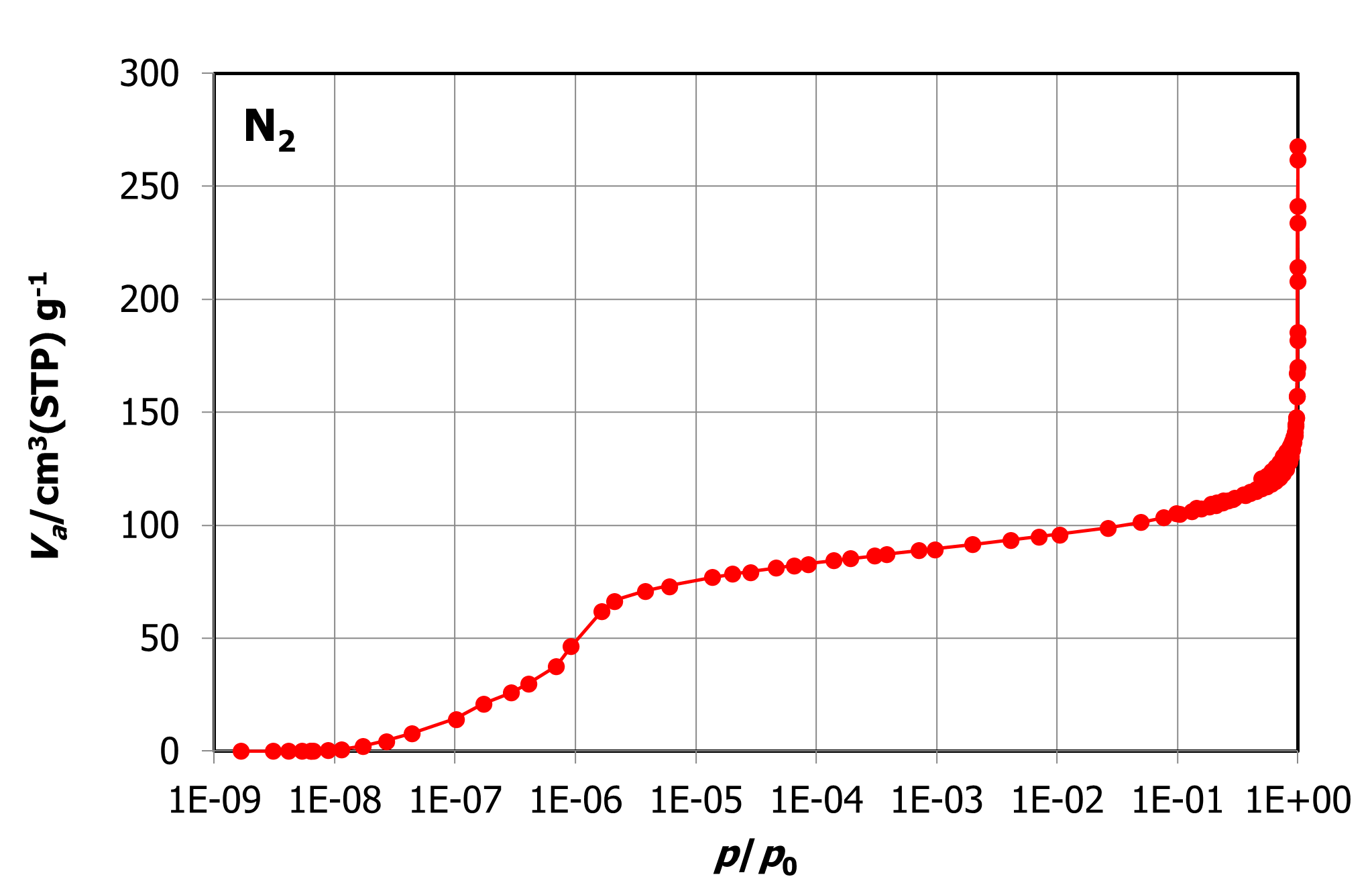

N2   N2

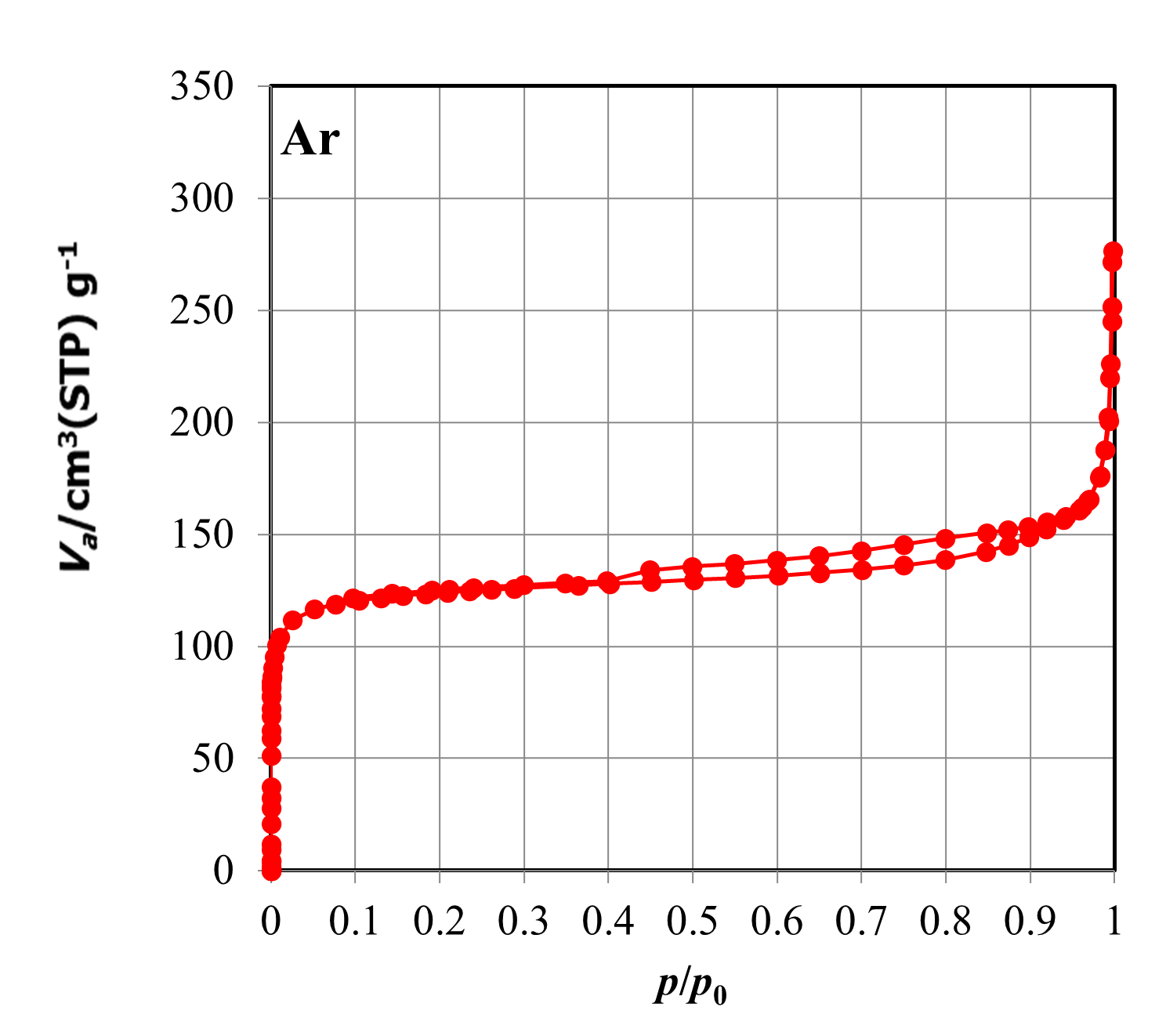

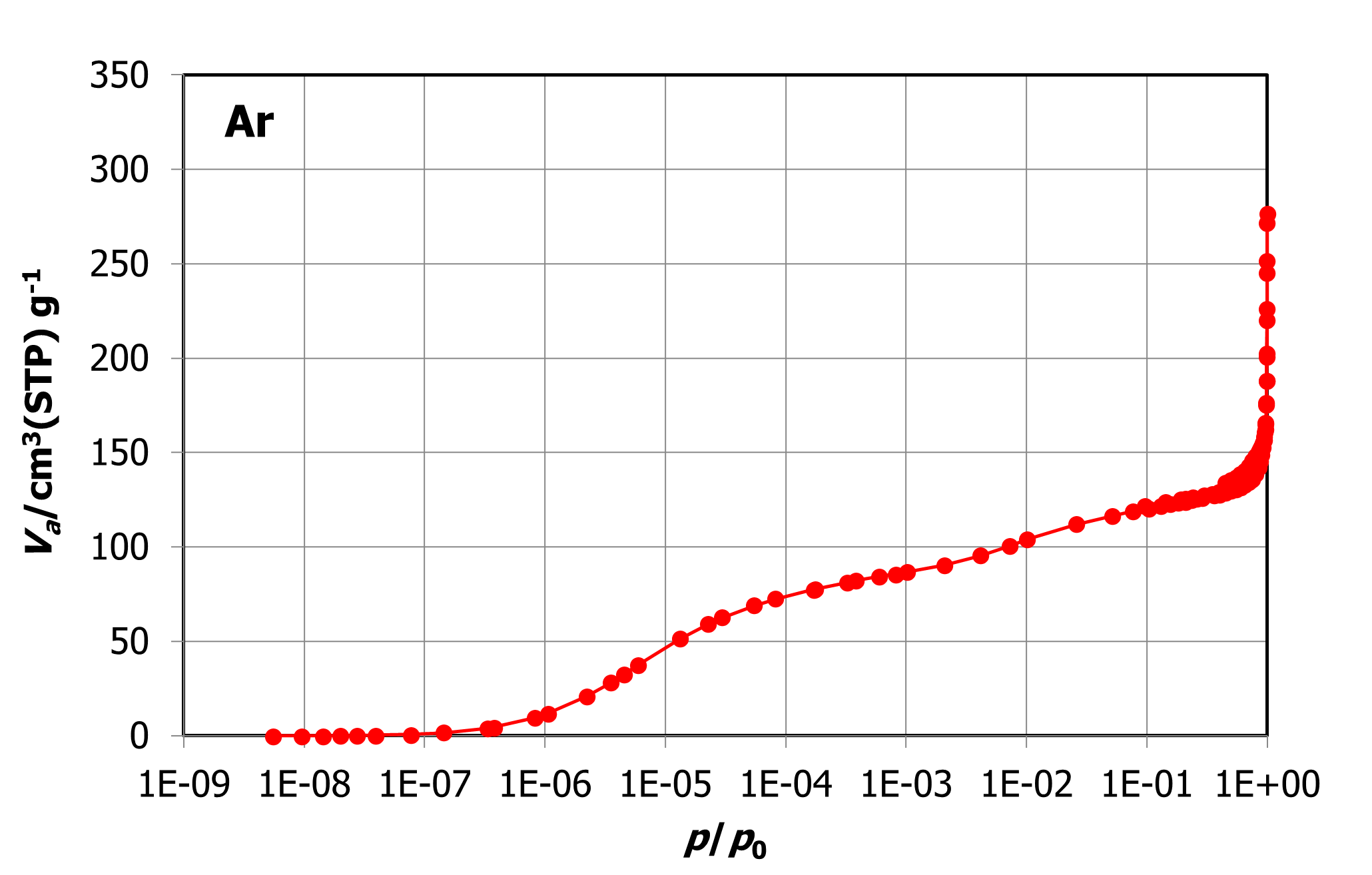

Ar   Ar

Download N2 sorption data

Download Ar sorption data



Data 2. provided by Fernando Rey Group

Experimental
N2 adsorption isotherms measured on a Micromeritics ASAP 2020 at -196 ºC.

Pretreatment
Prior to the adsorption measurements, the samples were degassed at 450 ºC for 24 h.

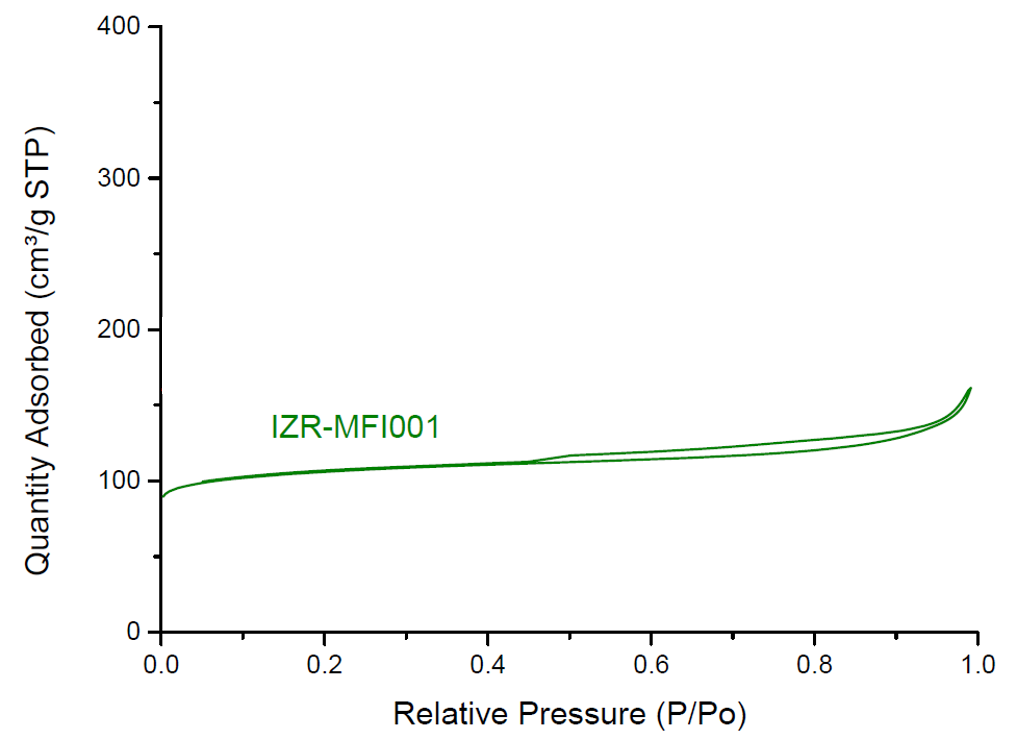

N2
